Hardware Pouch sachet Packing Machine ( 2/4/6/8/12 type Hardware Xixed or Independent Packing)

Short Description:

The screw hardware packaging machine is a machine that can automatically sort, count, pack and other products with regular shapes such as screws and nuts. composition.
The screw packaging machine is evolved from the traditional packaging machine. The photoelectric system is applied to the packaging machine, and the optical signal is converted into an electrical signal. It is controlled by the PLC system and uses a pneumatic device, so that the counting is very accurate, 100 screws per package. The error is 0, the error of 1000 packs is 1, and it is a pneumatic device, and the power consumption is 1/200 of the traditional. Applied to hardware, furniture, counting machines, toys, medicine and other industries. Can meet the requirements of users.

Send email to us

Product Detail

Product Tags

What materials can this equipment pack?

Hardware Fittings Screw Bolts Fastener Weighing Counting Packing Machine in Pouch

1. Applications: Screw, Bolt, Washer and other kinds of regular shape products.
2. Weighing and Fiber Counting packing, applicable to one kind with 1-5000pcs/bag.
3. Key parts own many patent technical, such as Fiber-optical device, Fiber-optical re-inspection, Re-inspection weigher.
4. Solid sealing, smooth and elegant bag shape; high effieciency and durability, can be equipped with exhaust device, printer, labeling machine, transfer conveyor and weight checker.
5. Automatic ordering, counting, packing and printing etc. Easily adjust the quantity of screws in the bag, set the quantity of bags what you need, when you meet, the machine will be stop automatically.

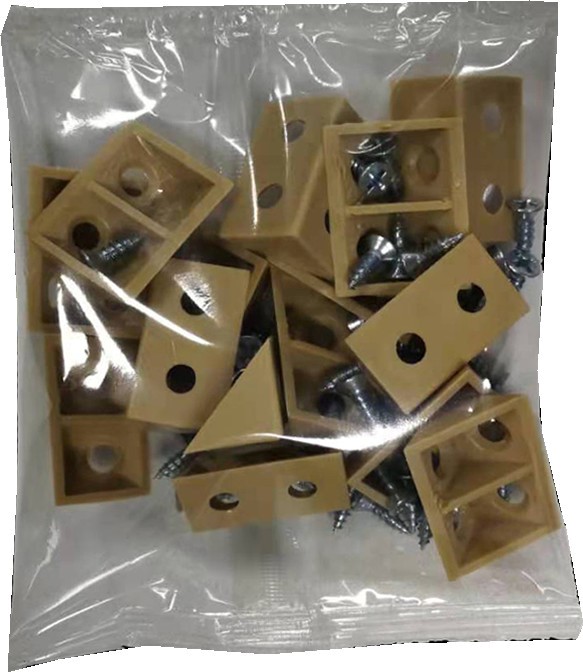

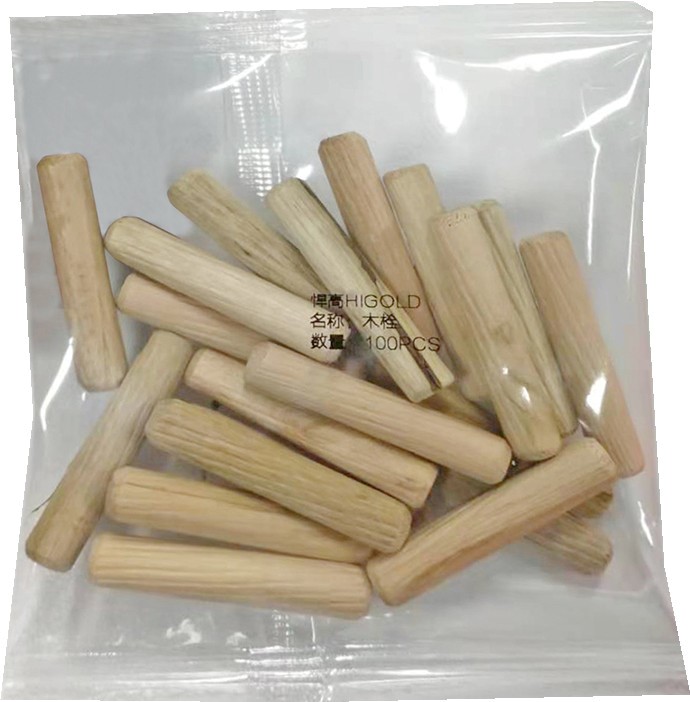

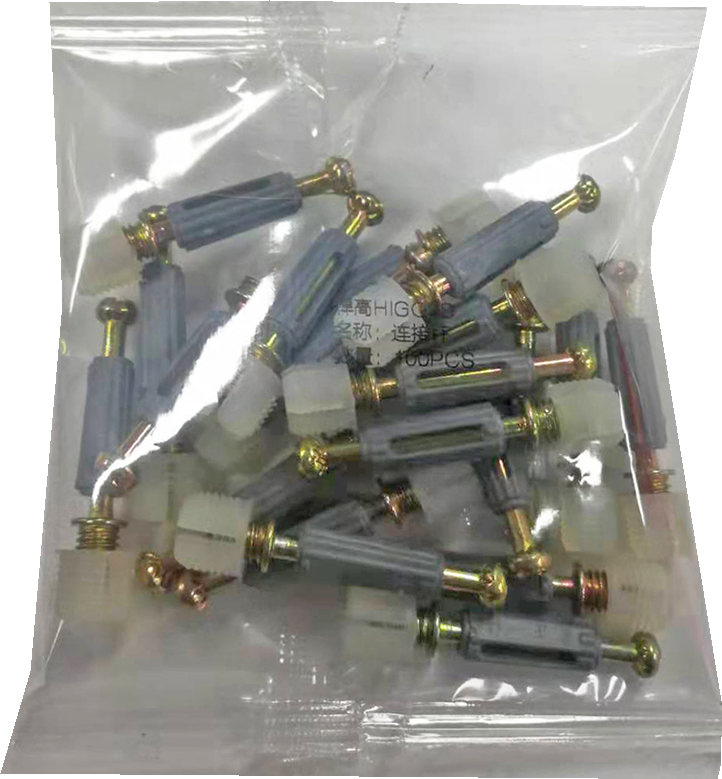

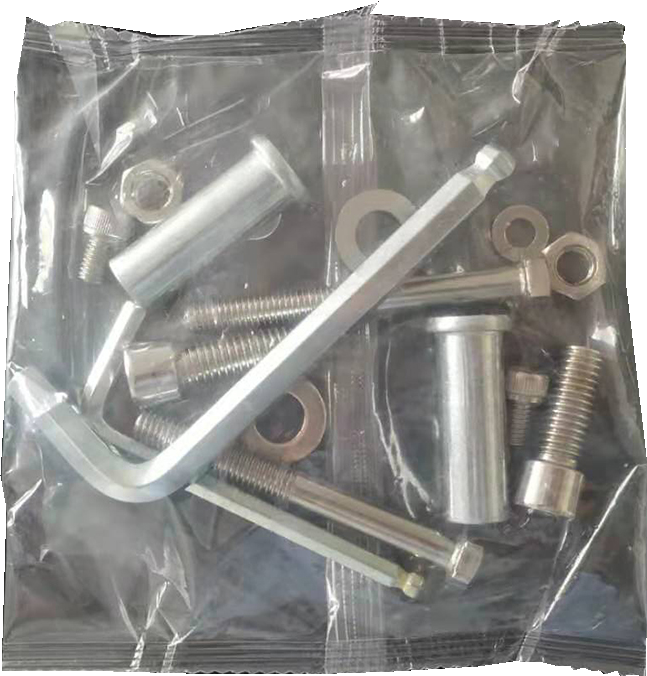

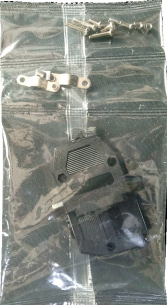

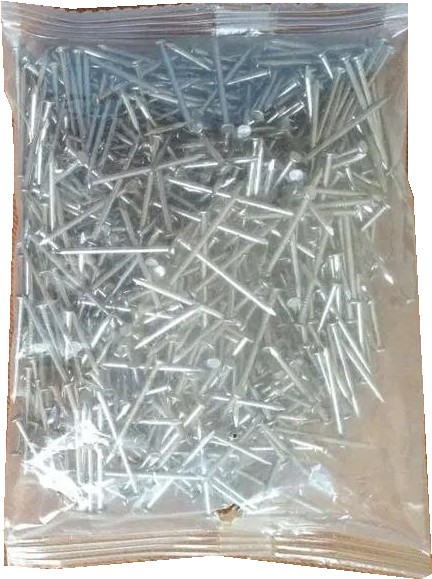

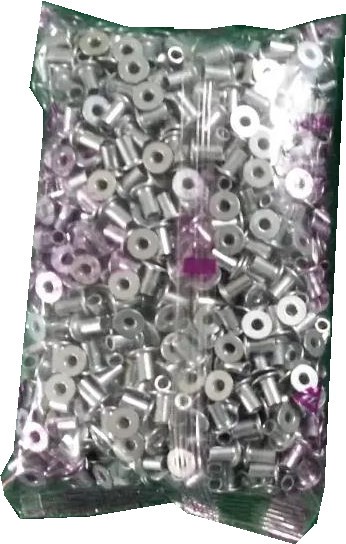

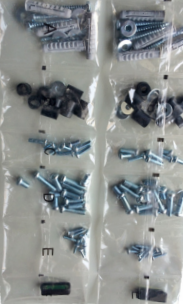

SAMPLE SHOW

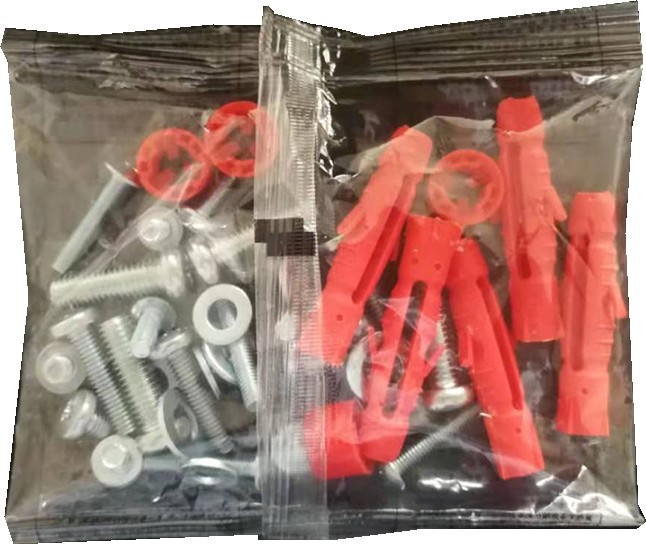

The hardware packing machine , it can make as customer request packing , one hardware ,two hardware , four hardware , eight hardware,twelves hardware,16 hardwares .

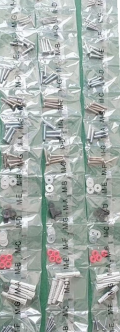

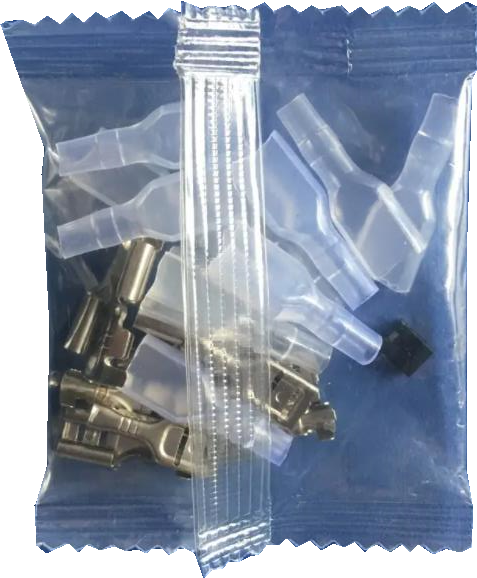

The pouch packing type , for backing sealing Continuous packaging or individual packaging.

Tailor-made vibration plate for screw samples, linear vibration arrangement device and high-precision technical control device ensure that each bag is accurate. When packaging packaging materials containing icons, the machine is equipped with advanced step control and color mark tracker. The PLC or the control system with single-chip microcomputer can automatically stop, alarm, and diagnose when fault occurs, and it is safe and easy to use.

PROCESS SHOW

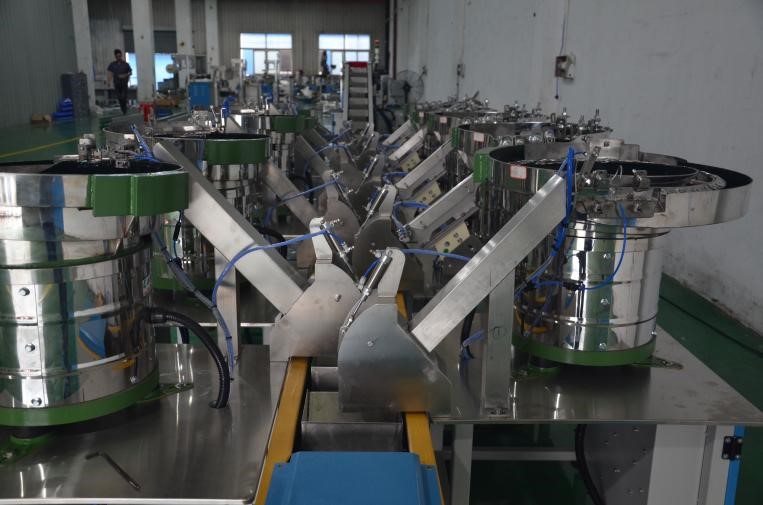

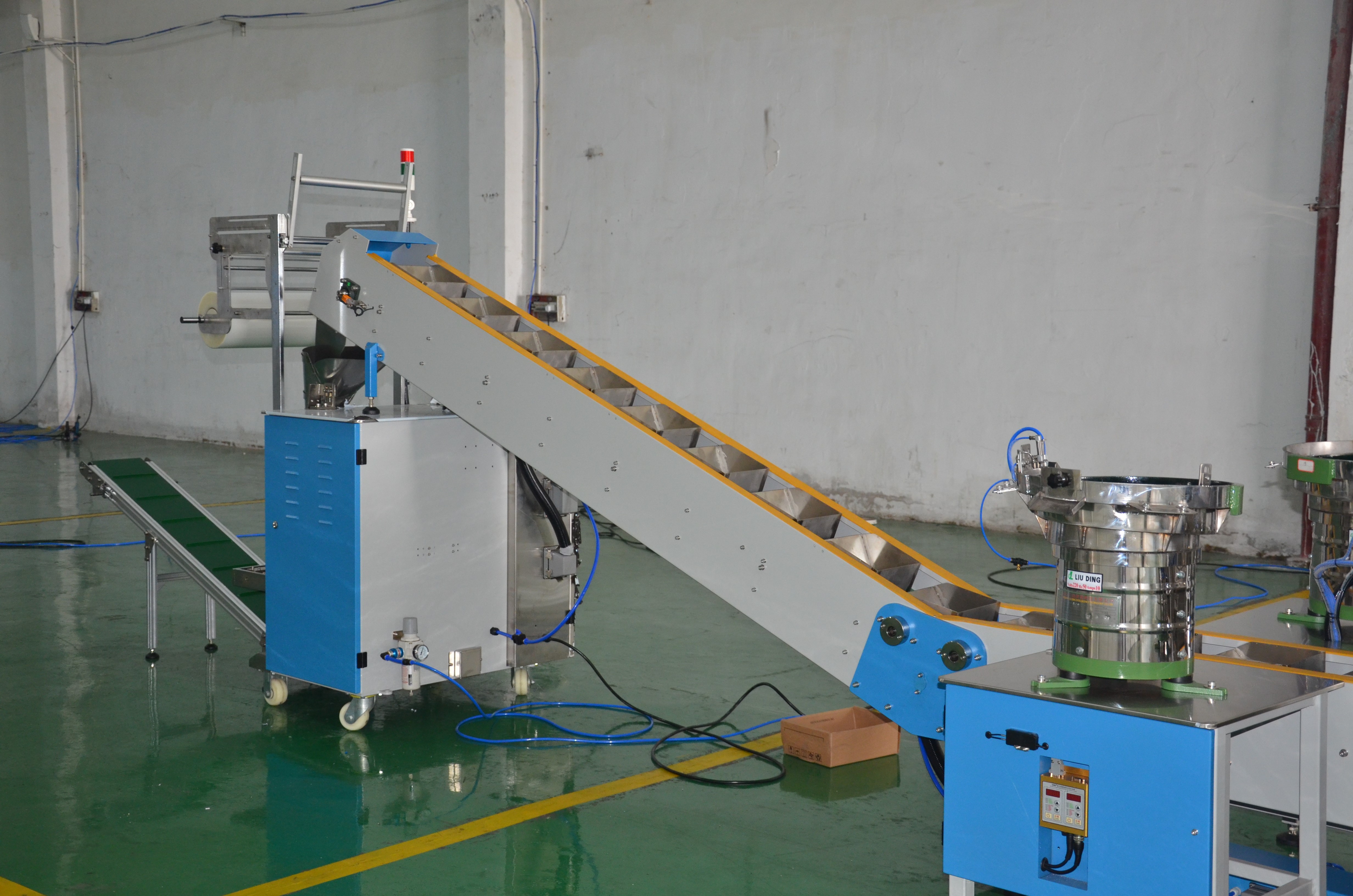

Hardware counting and packaging system, the machine can be equipped with multiple vibrating discs, and can fill a variety of different materials into the packaging bag at the same time, and the user can also selectively use one or two of the vibrating discs. Tailor-made vibrating discs for products, using optical fiber counting system, high accuracy of the number of each package. The equipment can realize automatic arrangement, automatic counting, bag making, filling, sealing and coding of materials. The expansion function is strong, and it can be single package, mixed package or subdivided package, and can add coding machine and exhaust device to meet the needs of different products. It is widely used in automatic packaging of auxiliary installation accessories for electrician, electrical appliances, lighting and hardware and building materials manufacturing industries.

MACHINERY DETAIL SHOW

A. Small package - Hardware Counting Packing Machine

MODEL:	BCP-S-320	BCP-S-420
PACKING SPEED:	30-60POUHS/MIN	30-60OUHS/MIN
BAG SIZE:	L50-180MM W40-150MM(change size shaper)	L50-300MM W40-200MM(change size shaper)
FILM MAX WIDTH:	≤320MM	≤420MM
VOLTAGE:	220V 50/60HZ	220V 50/60HZ
MACHINE WEIGHT:	300KG	400KG
TOTAL POWER:	1.52KW	2.52KW
DIMENSIONS:	1260x930x1700MM	1260x1000x1800MM

B. Mixed Pack - Counting Packing Machine

MODEL:	BCP-M-320	BCP-M-420
PACKING SPEED:	30-60POUHS/MIN	30-60POUHS/MIN
BAG SIZE:	L50-180MM W40-150MM(change size shaper)	L50-300MM W40-200MM(change size shaper)
FILM MAX WIDTH:	≤320MM	≤420MM
VOLTAGE:	220V 50/60HZ	220V 50/60HZ
MACHINE WEIGHT:	300KG	400KG
TOTAL POWER:	1.52KW	2.52KW
DIMENSIONS:	10000x1500x1600MM	11000x1500x1600MM

C. Compartment continues pouch Packing - Counting Packing Machine

MODEL:	BCP-F-320	BCP-M-420
PACKING SPEED:	30-60POUHS/MIN	30-60POUHS/MIN
BAG SIZE:	Length set as requested Width 40-150MM(change size shaper)	Length set as requested Width 40-200MM(change size shaper)
FILM MAX WIDTH:	≤320MM	≤420MM
VOLTAGE:	220V 50/60HZ	220V 50/60HZ
MACHINE WEIGHT:	300KG	400KG
TOTAL POWER:	1.52KW	2.52KW
DIMENSIONS:	11000x1500x1600MM	13000x1500x1600MM

DETAIL SHOW

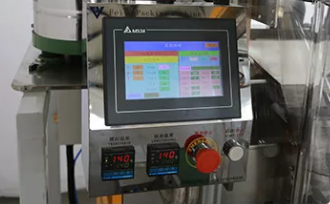

	PLC CONTROL :7 inch touch screen , easy operation
Precision weighing system , quality weighing box cusztomized

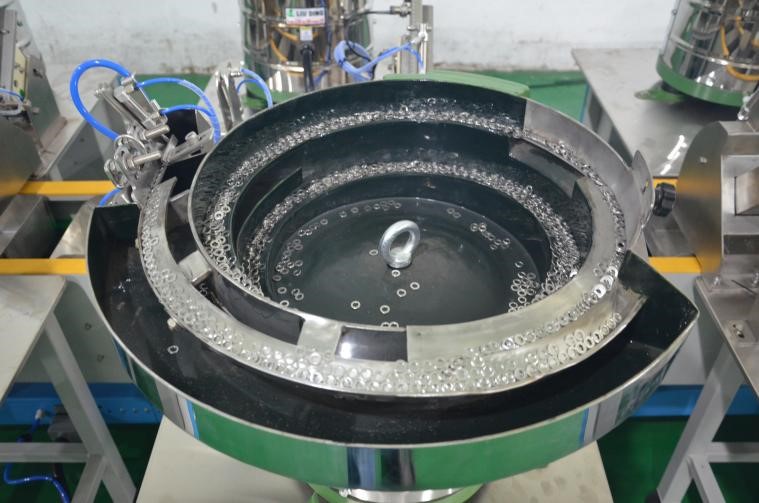

	Fiber couting system ,vivrating bowl with high accuracy fiber counting

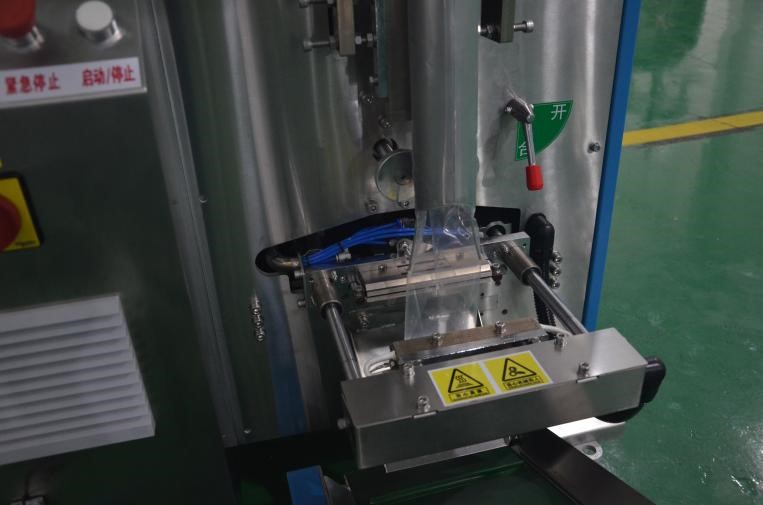

	Pouch making system

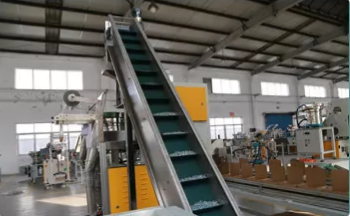

Conveyor system

Cursor and coding machine (optional)

The cursor fixed point realizes the automatic positioning of the length of the product packaging bag.

The coding machine realizes the automatic completion of packaging and printing production date.

The cursor is used in the printing film. If you need to cut a length of 10cm, the error will be 0.1cm at a time. If you cut 10 times, the deviation will be 1cm, and the printing pattern will be deviated. The cursor point is to draw a black frame on the packaging bag. When the machine is working The tracking is aligned with the black frame to automatically cut the bag, which is more accurate and will not deviate.
