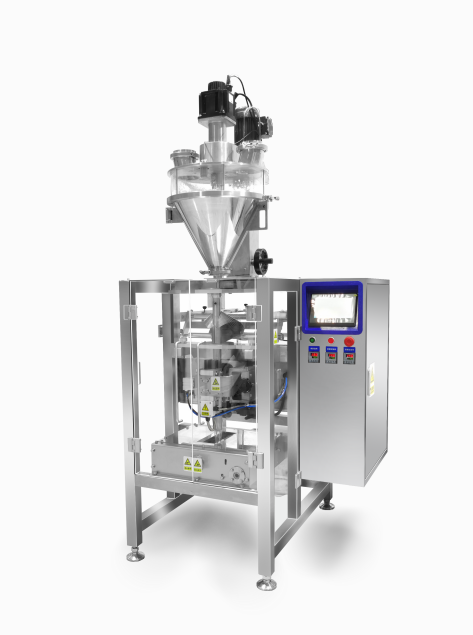

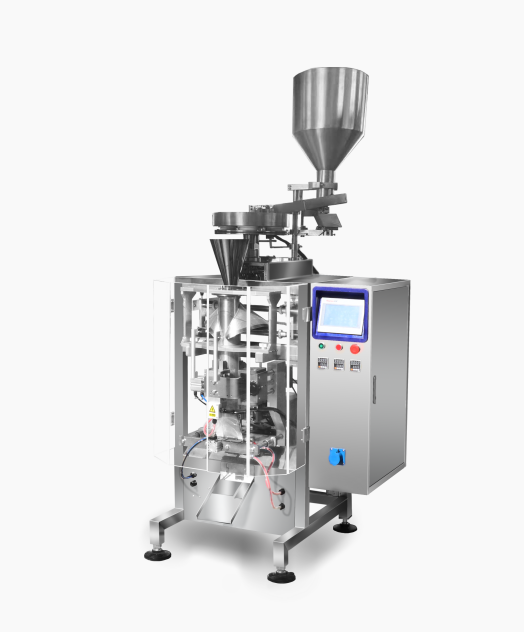

China Cheap price Case Wrap Shrink Machine - weighing scale pouch packing machine – BRENU Detail:

What materials can this equipment pack?

This machine is suitable for automatic packaging of powdery materials in food, cosmetic, chemical and other products, such as: milk powder, protein powder, soybean powder, facial mask powder, health tea powder, flour, glucose powder, pearl powder, soda powder, coffee powder, Packaging of granular solid materials such as puffed food, peanuts, melon seeds, rice, melon seeds, peppers, corn kernels, popcorn, sugar coffee, biscuits, etc.

Main performance and functional characteristics:

1. Equipped with security protection, in line with enterprise security management requirements.

2. Using intelligent thermostat, temperature control is accurate, and the seal is beautiful and smooth.

3. The PLC servo system, pneumatic control system and large display touch screen are used to form the drive control core, which maximizes the control accuracy, reliability and intelligence of the whole machine.

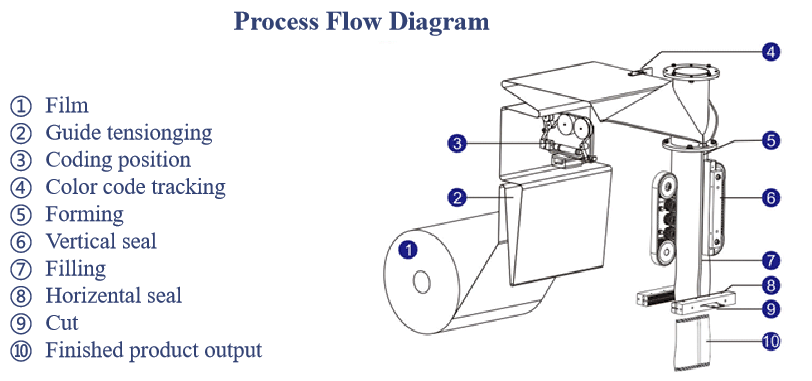

4. This machine and its metering configuration can automatically complete the whole packaging process of metering, feeding, bag filling, date printing, inflation (exhaust), and finished product transportation, and automatically completes counting.

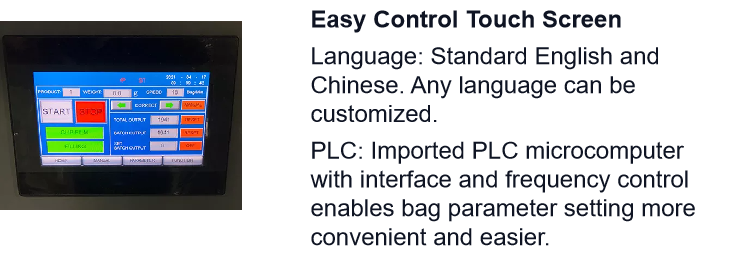

5. The touch screen can store the packaging process parameters of a variety of different products, which can be used at any time without resetting when changing products.

6. There is a fault display system to help troubleshoot in time.

7. It can be made into pillow bag, gusset bag, hole punch bag, etc. according to customer needs.

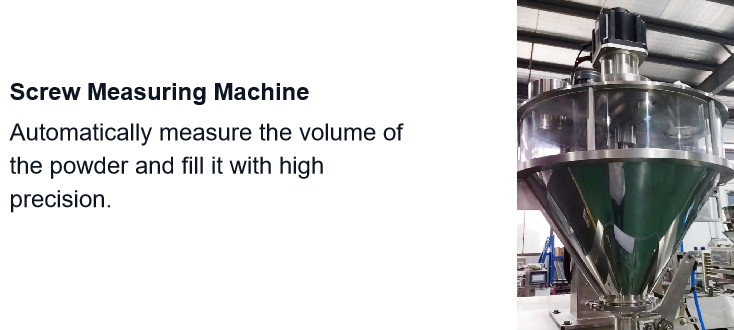

8. It can be equipped with powder screw head, measuring cup measurement, combined weighing system, liquid metering pump, vibrating plate counting system, etc.

TECHNICAL PARAMETER

Model	BKL-320	BKL-420
Making bag size	(L)50-180mm, (W)50-150mm	(L)60-300mm, (W)60-200mm
Packing speed	25-105Bags/Min	35-80Bags/Min
Power supply	220V, 50-60Hz,3Kw	220V, 50-60Hz,3Kw
Compressed air consumption	6-8 kg/m2- 0.3 m³/min	6-8 kg/m2- 0.3 m³/min
Weight	300 kg	350 kg
Dimension	L1400xW1000xH1200 mm	L1650xW1100xH1500 mm
Model	BKL-520	BKL-620
Making bag size	(L)80-350mm, (W)80-250mm	(L)100-400mm, (W)100-300mm
Packing speed	30-80Bags/Min	30-70Bags/Min
Power supply	220V, 50-60Hz,4Kw	220V, 50-60Hz,4Kw
Compressed air consumption	6-8 kg/m2- 0.3 m³/min	6-8 kg/m2- 0.3 m³/min
Weight	350 kg	350 kg
Dimension	L1650W1200H1600 mm	L1800W1300H1750 mm

packaging effect

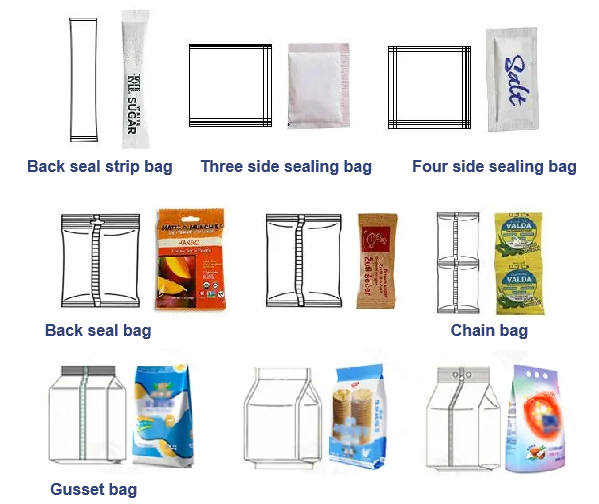

The machine can provide back seal packing, three-side packing and four-side packing effect.

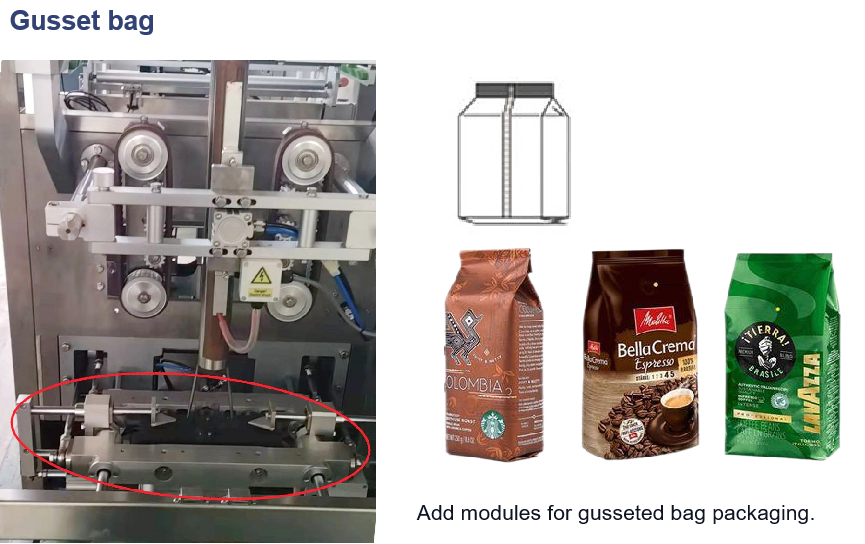

Bags with hanging holes, easy tearing, and gusseted effects can be upgraded as needed.

Machine detail

Cursor and coding machine (optional)

The cursor fixed point realizes the automatic positioning of the length of the product packaging bag.

The coding machine realizes the automatic completion of packaging and printing production date.

The cursor is used in the printing film. If you need to cut a length of 10cm, the error will be 0.1cm at a time. If you cut 10 times, the deviation will be 1cm, and the printing pattern will be deviated. The cursor point is to draw a black frame on the packaging bag. When the machine is working The tracking is aligned with the black frame to automatically cut the bag, which is more accurate and will not deviate.
