Cartoning Machine with glue sealing date code
Cartoning machine is a kind of packaging machinery, including automatic cartoning machine, medicinal cartoning machine and so on. The automatic cartoning machine automatically loads the medicine bottles, medicinal plates, ointments, etc. and instructions into the folding carton, and completes the box closing action. Some of the more functional automatic cartoning machines also have sealing labels or heat shrink wrap. Package and other additional functions.
| Product Name | Box Cartoning Machine |
| Product Material | Paper weight:300- 350gsm/m3 |
| Size :Max (L*W*H)200X130X90mm,Mini(L*W*H)100X40X35mm | |
| Voltage | 220V 50HZ |
| Air consume | 20m3/h (pressure0.5-0.7mpa) |
| Dimension | 3600x1450x1600mm |
| Weight | 1100kg |
| Power | 1kw |
Character
1.auto feed , open the box , fill the box , sealing box and select box once time ;
2.Touch screen ,PLC control , high technology,operate easy ;
3. Photo electricity trace system check the ,remove the empty box , save the packing material ;
4.For difference packing size , adjustable easy ,no need change the mode ;
5.Auto protect system, once the goods not entry box fully ,or overloading ;
6.With the glass cover ,safety and beautiful ;
7.This machine can join with packing machine , 3Dpacking , filling machine , labeling machine ,code machine work together ,become the completely line ;

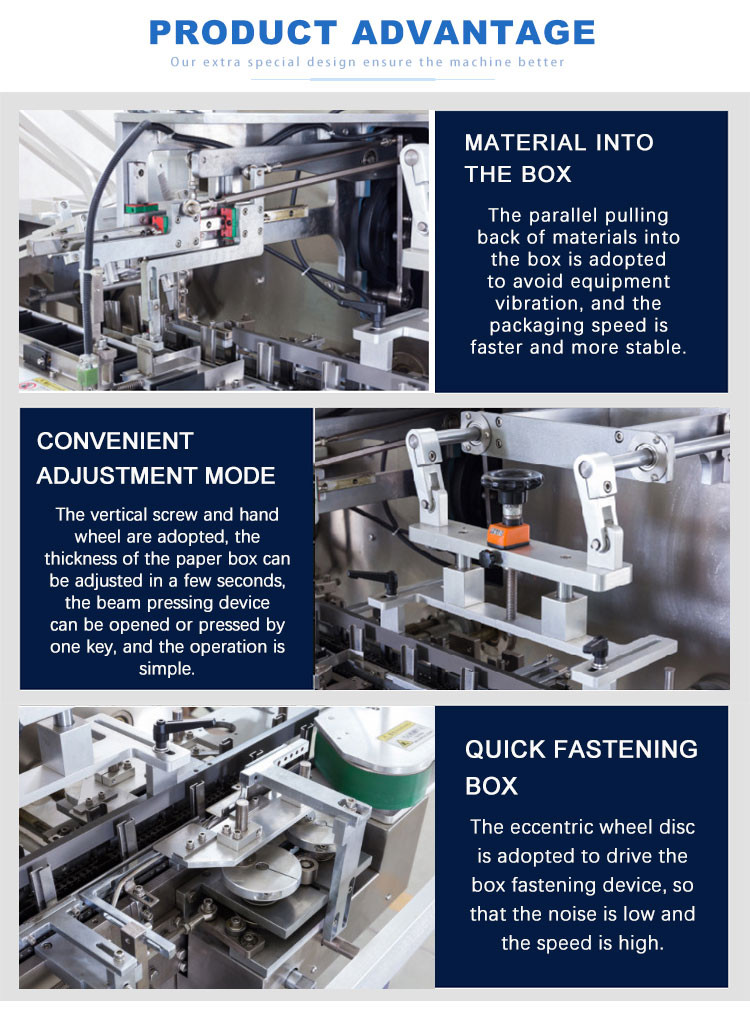

MATERIAL INTO THE BOX
The parallel pulling back of materials into the box is adopted to avoid equipment vibration , and the packing speed is faster and more stable
CONVENIENT ADJUSTMENT MODE
The vertical screw and hand wheel are adopted , the thickness of the paper box can be adjusted in a few seconds, the beam pressing device can be opened or pressed by one key ,and the operation is simple .
QUICK FASTENING BOX
The eccentric wheel disc is adopted to drive the box fastening device , so that the noise is low and the speed is high
 |

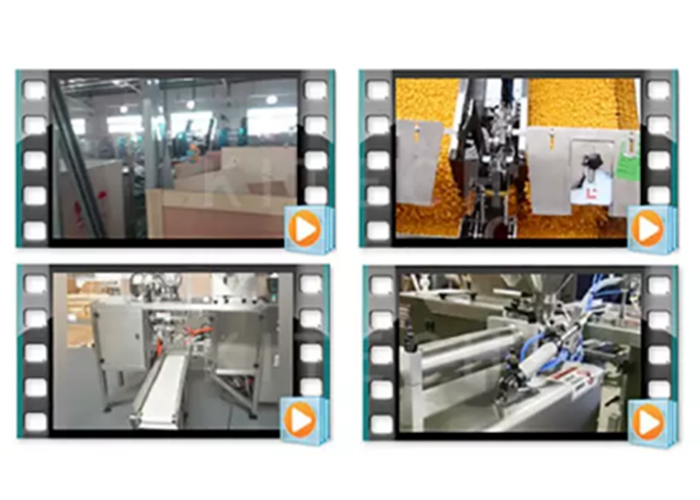

1.Support for sample running machine service，supply the video There are a variety of packaging machine models in our factory.Provide customers with sample services and check the perfection of product packaging.
|
|
2.Five-star after-sales feedback service Technical engineers produce and operate the machine for 72 hours without interruption according to the customer's packaging requirements. To ensure the stability of the machine's circuit control system, the structure of the transmission system, the wear of parts and components, and the accuracy of the metering system, only to provide customers with the most satisfactory packaging services.
|
 |
 |
3.On-site service arrangements Our factory supports technical engineers to provide on-site installation services, just to quickly troubleshoot for you, keep production uninterrupted, and protect customer production efficiency.
|
FAQ
1.What guaranteeing does BRNEU offer?
One year on non-wear parts and labor. Special parts discuss both
2. Do installation and training included in the machinery cost?
Single machine:we done installation and test before ship, also supply competently video show and operate book ; the system machine :we supply installation and train service , the charge not in the machine , buyer arrange tickets , hotel and food ,salary usd100/day )
3. What types of packaging machines does BRENU offer?
We offer complete packing systems that including one or more of the following machines , also offer manual , semi-auto or full auto line machine . like crusher ,mixer , weight , packing machine and so on
4. How does BRENU ship machines?
We box smaller machines, crate or pallet larger machines. We ship FedEx, UPS, DHL or air logistic or sea , Customer pickups are protected well. We can arrange partial or full container shipping.
5. How about the delivery time ?
All small regular single machine ship in any time , after test and packing well .
Customized machine or project line from 15days after confirmed the project
Welcome contact us know more the tea packing machine , coffee packing machine , paste packing machine , liquid packing machine , solid packing machine ,wrapping machine , Cartoning machine , snack packing machine and so on
