Candy Gummy Chocolate Weighing Filling Packing Machine

Short Description:

Soft candy （gummy） is a kind of soft, elastic and tough functional candy. It is mainly composed of raw materials such as gelatin and syrup. After multiple processes, it constitutes a solid candy with different shapes, textures and flavors, which is exquisite and durable. Elastic and chewy,it like Candy gummy chocolate weighing filling packing machine
It is sealed in aluminum-plastic bags and packed into iron cans or transparent medicinal PET bottles. It is a mid-to-high-end nutritional product targeting children and young women.

Send email to us

Product Detail

Product Tags

It is sealed in aluminum-plastic bags and packed into iron cans or transparent medicinal PET bottles. It is a mid-to-high-end nutritional product targeting children and young women.

Automatic combination weighing packaging machine suitable for all kinds of irregular particles or relatively large particle packaging. The machine is composed of multiple weighing heads. Through digital arrangement and combination, high-speed computer calculation, several weighing heads closest to the target weight are randomly selected for blanking. High accuracy and fast speed. Such as sugar cube packaging, quick-frozen dumpling packaging, dumpling packaging, etc.

Fully automatic combined weighing and packaging machine, a total line solution for granules, fondant, chocolate, etc.Candy gummy chocolate weighing filling packing machine is the good choice for business

1. Process:

Automatic bottle unscrambler→vibrating material conveying→automatic weighing→automatic positioning and weighing equipment→automatic capping and capping→aluminum foil sealing→labeling and coding→bottling machine

2. Technical parameters:

1. Product Specifications: Canned

2. Production capacity: The production speed of the product is 30-50 cans/min (depending on the material and the speed of the weighing machine)

3. Measurement accuracy: ≤±1%

4. Compressed air consumption: about 0.5 cubic meters per minute 0.6-0.7Mpa (user-supplied)

5. Total power: 10.0KW (excluding self-provided equipment and other factory auxiliary equipment)

3. Brief description of packing production for Candy gummy chocolate weighing filling packing machine

1. This bag packaging production line is configured in accordance with national food standards, the entire production process is highly automated, and conforms to Chinese food production standards;

The appearance and material contact parts of this production line are made of 304 stainless steel, and all machine structures are selected and designed in accordance with food hygiene standards;

The material of the container in contact with the material is food-grade SUS304 or food-grade PP material;

The structures that are often dismantled and washed are connected by easy dismantling parts, which ensures hygienic and convenient handling when changing shifts or changing products;

2. This production line needs 1-2 employees during normal production.

4.Candy gummy chocolate weighing filling packing machine solution show

Packing solution
items	Name and detail	Q’T	UNIT	Material	Picture

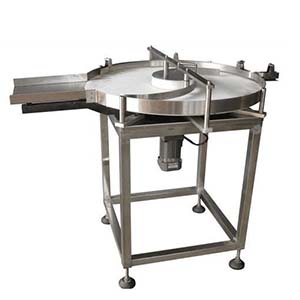

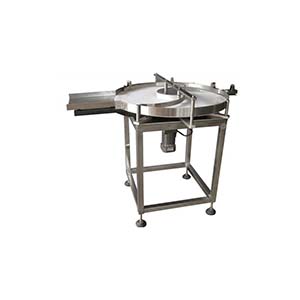

1	Unscrambler Diameter of turntable: 1000-1200mm Bottle diameter: 30-100mm Bottle height: 60-150mm Material: stainless steel 304 material Power: 100W Power specification: 220V50Hz	1	set	Stainless steel 304 material

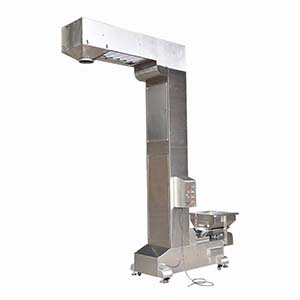

2	automatic feeder 1. Lifting capacity: 2-3.5 m3/H 2. Single bucket volume: 1.6L 3. Power supply: 3P/380V/50Hz 4. Power: 750W	1	set	Stainless steel 304 material

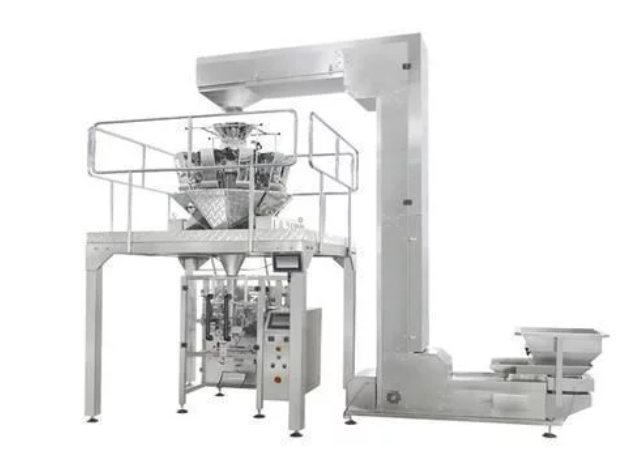

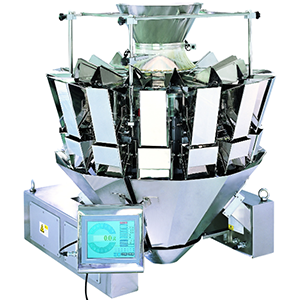

3	10 bucket combination weighing equipment 1. Weighing range: 100-1000g 2. Single bucket volume: 1.6 L 3. Weighing accuracy: 0.1-1.0g 4. Weighing speed: 30-130bag/min 5. Drive mode: stepper motor 6. Power supply: 220V/50HZ	1	set	Stainless steel 304 material

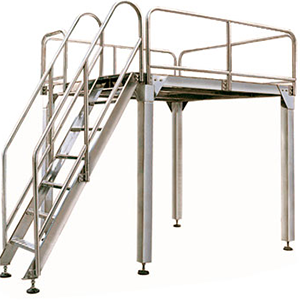

4	work platform Size :1800x1800x1800mm	1	set	Stainless steel 304 material
8	Automatic positioning of filling part 1. Measurement method: weighing filling 2. Container size: φ50—180mm Height 50—200mm 3. Packing speed: 30-50 cans/min 4. Power supply: 3P/380V50Hz 5. Machine power: 1500w	1	set	Stainless steel 304 material

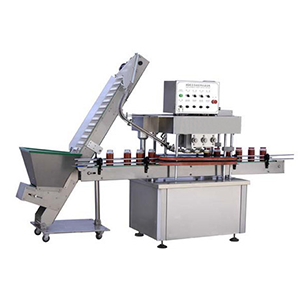

9	Automatic capping and capping machine Capping speed: 30-60 bottles/min Cover diameter: 10-100mm Cover height: 10-20mm Bottle diameter: 10-120mm Height: 50-200mm Voltage 1P/220V50HZ Power: 1000W	1	set	Stainless steel 304 material

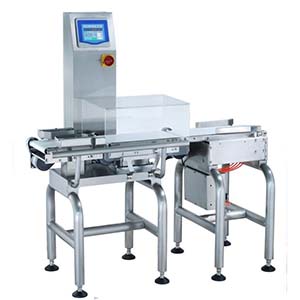

10	Weight sorting scale Test weight: 100-500 grams Detection accuracy: 0.2-1% Detection speed: 30-60 bottles	1	set	Stainless steel 304 material

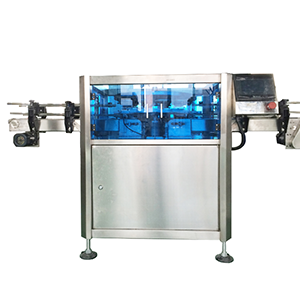

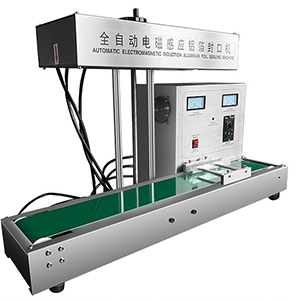

11	Aluminum foil sealing equipment Power supply: 220V/50Hz Power: 2000w Sealing diameter: ф20-100mm Container height: 30-260mm Speed: 30--60pcs/min Weight: 180kg	1	set	Stainless steel 304 material

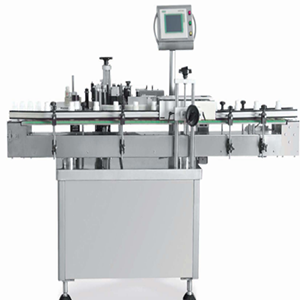

12	Automatic labeling machine coding (customized) Labeling accuracy: ±1mm Labeling speed: 25 to 40 pieces/min Applicable power supply: 1P/220V50Hz Power: 500w	1	set	Stainless steel 304 material

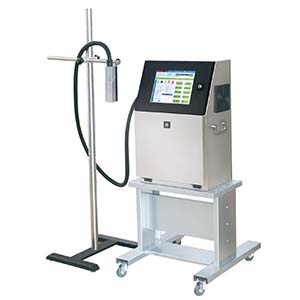

13	inkjet printer Number of lines: 1-5 lines Font height: 1.5-15mm Coding speed: 7m/sec Coding angle: 360 degrees Coding distance: 2-50mm	1	set	Stainless steel 304 material

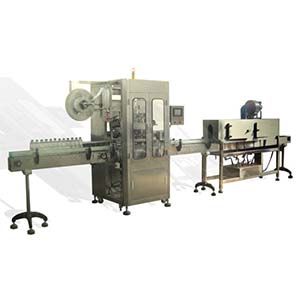

14	Sleeve labeling machine + shrinking equipment Power: 20000W Voltage: 220V50Hz Speed: 100—250 bottles/min Bottle diameter Φ38—Φ120 mm Label length: 30-220mm Label thickness: 0.03-0.13mm	1	set	Stainless steel 304 material

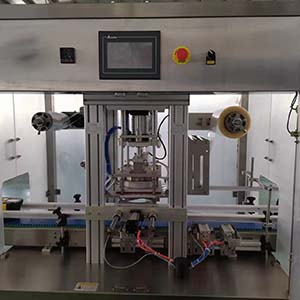

15	Laminating machine Packing speed: 15-20 bottles Diameter of film: 100-200mm Motor power: 1500W	1	set	Stainless steel 304 material
16	bottle closing machine Diameter of turntable: 1000-1200mm Bottle diameter: 30-100mm Bottle height: 60-150mm Material: stainless steel 304 material Motor power: 100W Power specification: 1P/220V50Hz	1	set	Stainless steel 304 material

PS : Beverage filling machine, beverage filling machine is a plastic bottle beverage filling machine, automatic filling and capping machine, is a multi-functional beverage filling machine. It is used for filling carbonated beverages, soda water, salt soda and other carbonated beverages, as well as non-sparkling beverages such as fruit juice beverages and purified water. One machine has multiple functions and is a new type of filling machine with high practicability.

Welcome contact in any time ,customized line is our advantage
