Aluminum Metal Cap Filling Capping Labeling Machine( Liquor Vodka Whisky Red Wine Oil )

Short Description:

The filling machine is one of the main equipments produced by the winery. It is based on foreign advanced technology and is a machine for automatic production according to the characteristics of liquor (viscosity, alcohol content, etc.). It can save a lot of manpower and material resources. Realize the automatic filling of various wines. Liquor filling machine adopts stainless steel body, compact structure, perfect control system, convenient operation and high degree of automation; parts in contact with materials are made of high-quality stainless steel, no process dead ends, easy to clean; high-speed filling valve, accurate liquid level No liquid loss to ensure filling process requirements; complete overload protection device can effectively protect equipment and operator safety;

Send email to us

Product Detail

Product Tags

Chinese liquor can be divided into five types according to the aroma type: Maotai-flavor, strong-flavor, Qing-flavor, rice-flavor, and concurrent-flavor. According to the type, it can be divided into five types: liquor, beer, wine, rice wine, medicinal wine, etc. Liquor: a unique distilled liquor in China, which is made from saccharide raw materials and distilled from fermented fermented glutinous rice. Beer: The oldest alcoholic beverage of mankind and the third most consumed beverage globally after water and tea. Wine: An alcoholic beverage made from fermented fresh grapes or grape juice.

Rice wine: Chinese national specialty, also known as rice wine, belongs to brewing wine. Medicinal wine: Known as the "longest of a hundred medicines", it "dissolves" traditional Chinese medicine and wine for physical fitness. Spirits are usually divided into eight categories: Gin, Whisky, Brandy, Vodka, Rum, Tequila, Spirit ,Sake.

Auto line : Unscrambler+filling +capping+ labeling+collector

INDEPENDENT UNSCRAMBLER

Model	UNSCRAMBLER	COLLECTOR
Specification	800mm	1000mm
Power supply	110v/220v 50/60hz	110v/220v 50/60hz
power	120w	120w

FILLING MACHINE

Due to the wide range of liquid filling machinery, there are various types of liquid filling machinery, and there are corresponding filling equipment according to different classifications.

Liquid filling machine can be divided into atmospheric filling machine, pressure filling machine, vacuum filling machine and automatic quantitative liquid filling machine according to filling principle.

According to the type of filling operation, it can be divided into automatic liquid filling machine and semi-automatic liquid filling machine.

According to the filling type, it can be divided into diluted liquid filling machine, concentrated liquid filling machine and oil filling machine,paste filling machine,powder filling machine , small scale bottle table type filling machine , cosmetic drip oil filling machine.

Model	Liquid filling machine
power	0.5kw
speed	5-60pcs
Air pressure	0.4-0.6MPA
Filling accuracy	+/11%
Suitable filling	10-100ml ,30-300ml,50-500ml,100-1000ml,500-3000ml,1000-5000ml
Filling head	2

MACHINERY KEY PARTS

No	NAME PARTS	BRAND	PICTURE

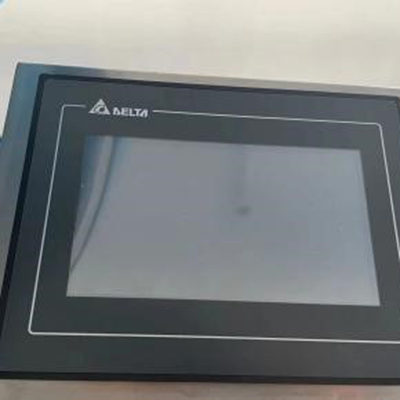

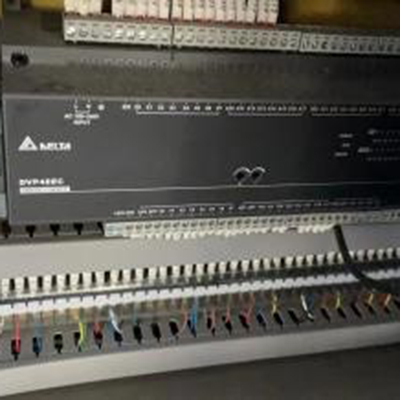

1	PLC and touch screen	International Famous brand
2	Electric control	International Famous brand

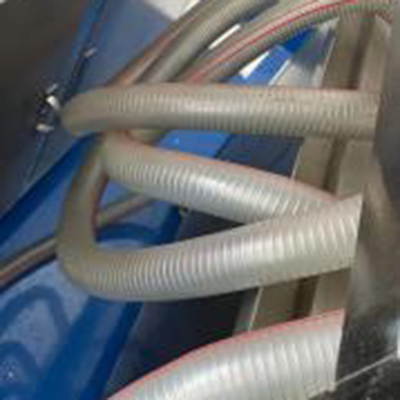

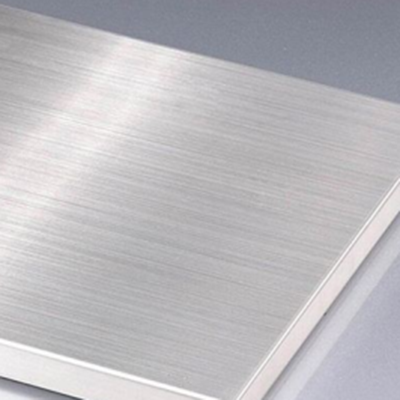

3	Material for touch the goods	Food grade stainless steel 304 and food grade sillicon pipe

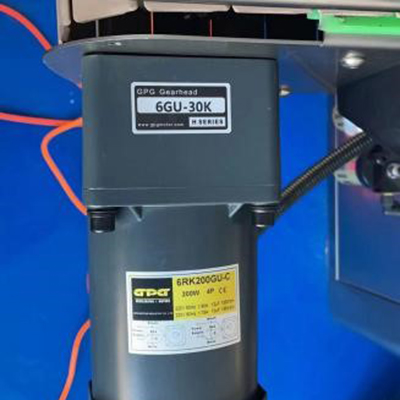

4	Motor	International brand

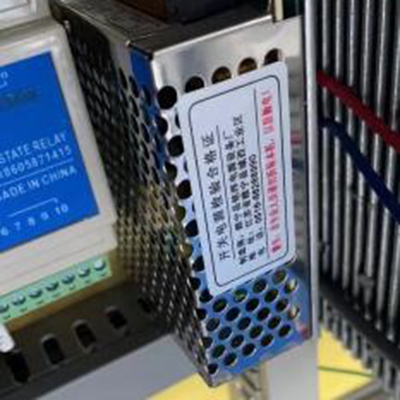

5	Switch and electric parts	International brand
6	Transport method	Line type directly

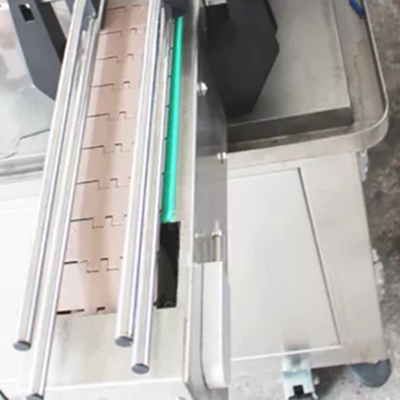

7	Conveyor	Special plastic

ROTARY CAPPING MACHINE(automatic)

Capping machine is also called sealing machine, pressure machine , mainly used for plastic bottles and glass bottles.it have more difference type as the difference cap material ,plastic or metal one .

For example : 5ml Rotary Capping Machine, paste sauce tin type capping machine ,plastic bottle type capping machine

This machine suitable for more type production , the cap suitable rotary capping , including cap fit

Model	AUTOMATIC CAPPING MACHINE
power	1.5KW
speed	20-40pcs
Air pressure	0.4-0.6MPA
Machine size	L2000xW1600xH1600mm

SEMI AUTO CAPPING MACHINE

NO A	ITEM	DETAIL
1	Model	BDK-50/D
2	Power	220x 50/60hz,370w
3	Way of working	By hand
4	Lift mode	Lift
5	Type	landed
6	Material of machine	Spraying plastic on the steel surface
7	Cap diameter	20-40mm
8	Bottle height	100-330mm
9	Capacity	20 times/min
10	Machine weight	65kg
11	Dimensions	620x260x1000mm

LABELING MACHINE

Automatic vertical labeling machine for glass bottles , plastic bottles and other cylindrical obhects , tapered objects can be customized , but also according to product needs to increase the printer

MODEL	Round bottle vertical labeling machine BLT-220
Speed	20-200 pcs/min(adjustable)
Suitable diameter of bottle	D30-120mm
Label height	15-150mm
Label length	25-300mm
Label accuracy	+1%
Inner diameter of label roll	76mm
Out diameter of label roll	350mm
Power	110v/220v 1.5kw 50/60HZ
machine size	L2000xW950xH1400mm
Weight	200kg
